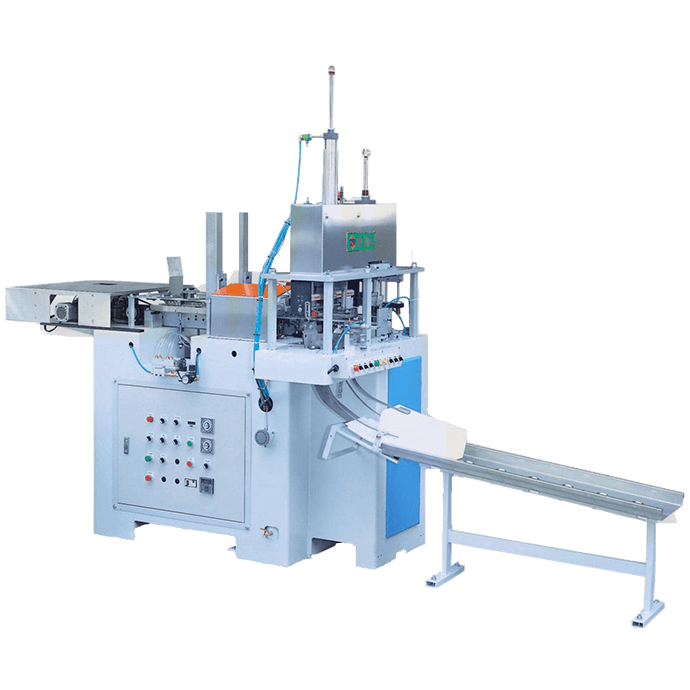

WS‑1100 Single‑Compartment Paper Lunch Box Forming Machine
產品概述

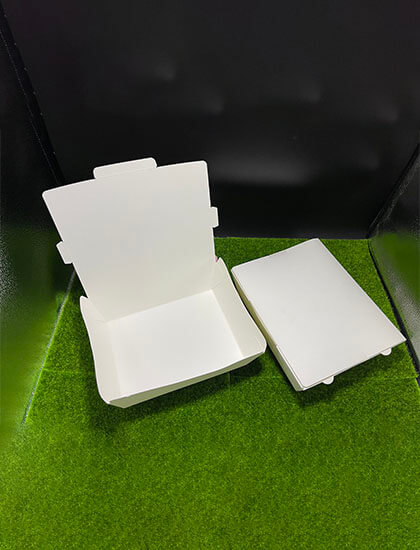

The WS‑1100 is a high‑efficiency paper lunch box forming machine developed by Win Shine, designed for producing single‑compartment disposable food boxes. It combines high productivity, low maintenance, and compact design, making it suitable for small to medium‑scale production lines.
主要特色與優勢
High Production Speed — Capable of producing up to 65 pcs/min, depending on box size and paper type.
Material Compatibility — Supports 1PE or 2PE coated kraft or ivory paper, with a paper thickness range of 0.38mm to 0.47mm.
Sealing Method — Utilizes hot‑air heater sealing, ensuring reliable and consistent closures.
Energy Efficient — Requires approximately 5.5 kW of electrical power and 500 L/min at 6 bar of compressed air.
Compact Design — Machine dimensions: 166 × 144 × 209 cm; weight: 480–700 kg, depending on configuration.
Easy Mold Change — Quick and simple mold replacement process to accommodate different box sizes.
Low Maintenance — Designed for ease of operation and minimal maintenance requirements.
應用領域

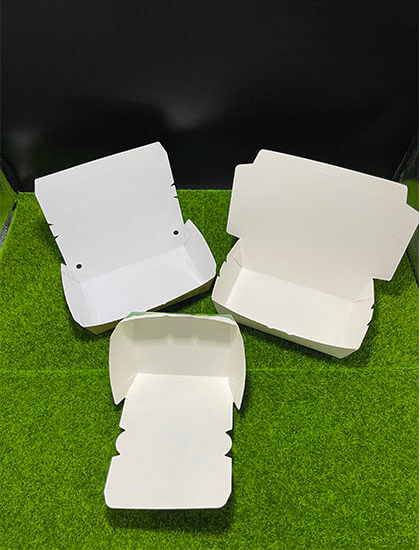

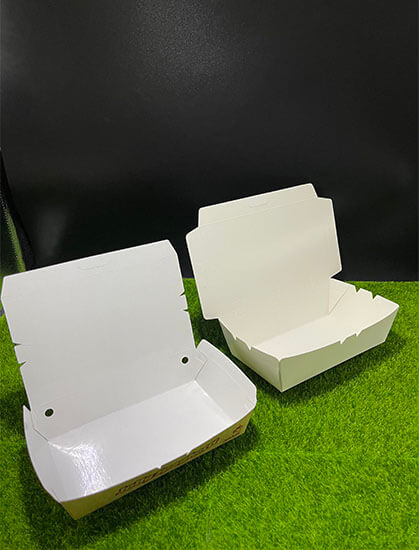

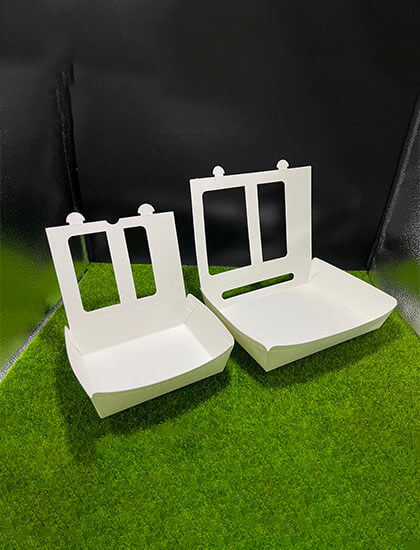

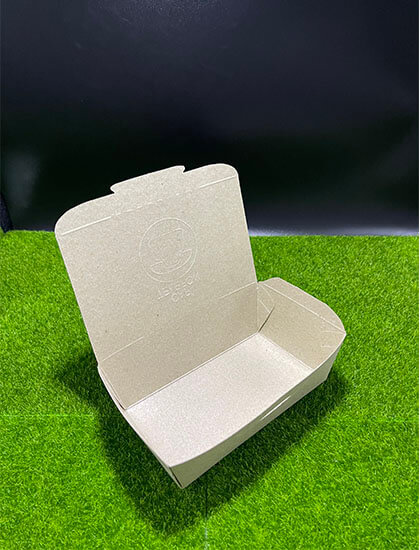

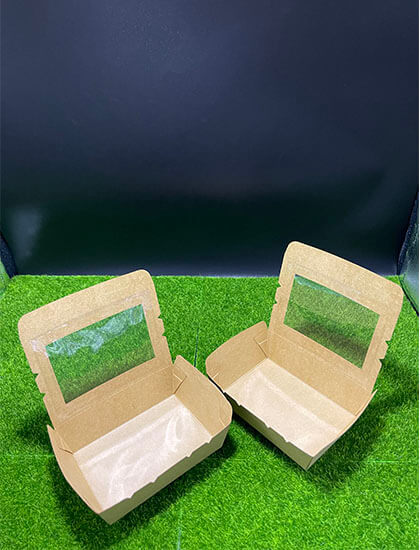

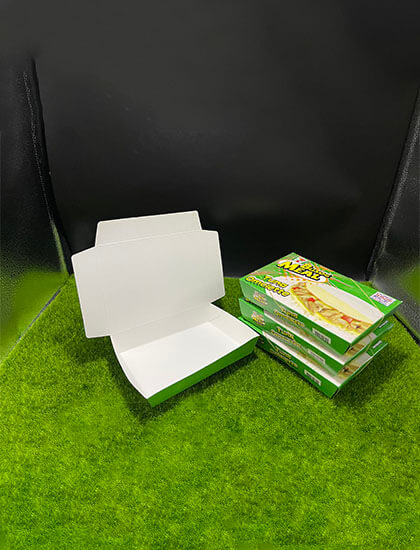

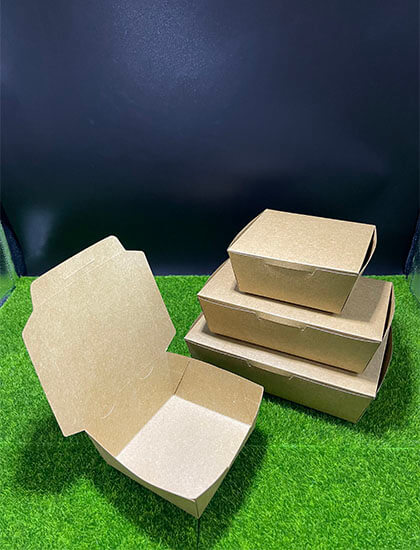

The WS‑1100 is ideal for manufacturers producing single‑compartment paper lunch boxes, catering containers, and OEM packaging solutions. Its high efficiency and compact design make it a valuable addition to any production line.
為什麼選擇Win Shine？
Win Shine has over 20 years of experience in developing and manufacturing paper lunch box forming machines. We provide comprehensive support, including mold design, machine installation, and after‑sales service, ensuring your production line operates smoothly and efficiently.
行動邀請
Interested in enhancing your production capabilities with the WS‑1100? Contact us today to request a quote, schedule a demonstration, or learn more about how our machines can meet your specific needs.
紙盒成型機
WS-1100 Single-grid Paper Lunch Box Forming Machine
WS-1101 Large-Scale Paper Lunch Box Forming Machine
WS-1102 Snack Box Forming Machine
WS-1105 Extra-Large Paper Lunch Box Forming Machine
優點：
1. Mold changeable.
2. Change mold simply.
3. Easy maintain and operation.
4. Economic price and high efficiecy.
5. We make the machines in Taiwan 100%.
6. We invent this paper food box making machine more than 20 years ago.
產品敘述
規格表
| Model | Dimension | ||
|---|---|---|---|
| L | W | H | |
| WS-1101 | L:150~185 | W:90~115 | H:20~43 |
| WS-1102 | L:90~120 | W:70~110 | H:20~43 |
| WS-1103 | L:70~120 | W:50~80 | H:20~43 |
| WS-1105 | L:190~250 | W:125~150 | H:40~60 |
| No. | 產品敘述 | WS-1101 | WS-1102 | WS-1103 | WS-1105 |
|---|---|---|---|---|---|
| 1 | 生產速度（個/分鐘） | MAX 65 | MAX 65 | MAX 65 | 45 |
| 2 | 紙質材料 | Single or double PE coated paper ISG-280~340 g/m² | |||
| 3 | 黏合方式 | 熱風加熱器密封 | |||
| 4 | 紙張厚度 | 0.38mm~0.47mm | |||
| 5 | 耗電量 | 5.5 Kw/hr. | |||
| 6 | 耗風量 | 6kg/cm² × 500 L/min | |||
| 7 | 機械尺寸 (長×寬×高 cm) | 166×144×209 | 166×270×230 | ||
| 8 | 機台重量 (淨重 kgs) | 480~700 | |||
* 歡迎客製化設計。.
* 本公司保留修改規格之權利，恕不另行通知。.
